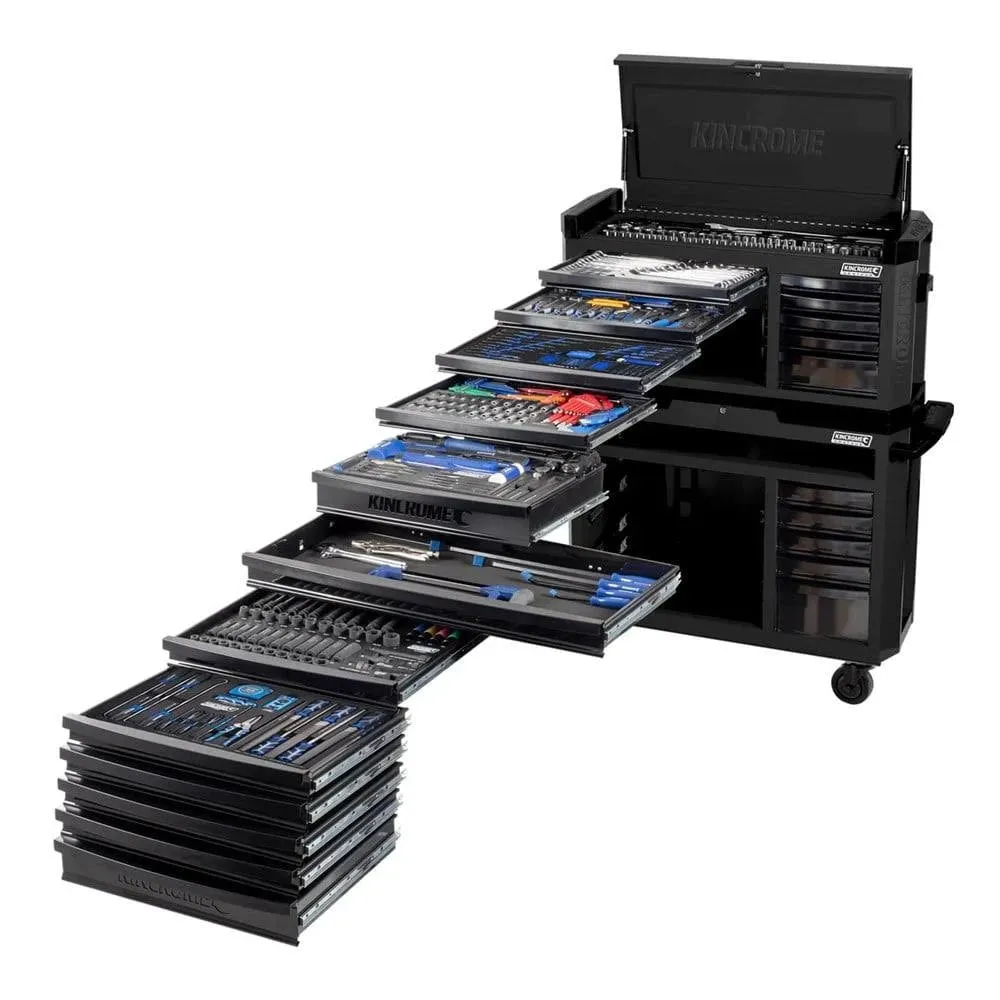

CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed
for those looking for trade quality tools and features. CONTOUR® comes loaded with premium
features for apprentices and professionals, combined with modern styling, offering you the very
best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range
features a sleek contoured design, available in a variety of gloss colours with a UV protected powder
coated finish. CONTOUR® storage comes standard with a range of premium features, including;
the chamfered Kincrome embossed side panels, ‘Automatic Drawer Retention System (ADRS)’
locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding
work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from;
26″ standard, 28″ & 29″ extra deep, 42″ extra wide and 60″ super wide. CONTOUR® is fully
modular and customisable, offering the flexibility to build your own premium workshop,
the way you want.

CONTENTS

TOP TRAY – EVA557T 163 Piece EVA tray Sockets & Accessories LOK-ON™

Metric Sockets LOK-ON™:
• 10 Sockets 1/4″ Square Drive:4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
• 12 Sockets 3/8″ Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
• 19 Sockets 1/2″ Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets LOK-ON™:
• 9 Sockets 1/4″ Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2″
• 7 Sockets 3/8″ Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4″
• 15 Sockets 1/2″Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4″

Metric Deep Sockets LOK-ON™:
• 11 Sockets 1/4″ Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm
• 12 Sockets 3/8″ Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
• 15 Sockets 1/2″ Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Deep Sockets LOK-ON™:
• 8 Sockets 1/4″ Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 3/8, 7/16, 1/2″
• 8 Sockets 3/8″ Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16″
• 10 Sockets 1/2″ Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16″

26 LOK-ON™ Socket Accessories:

1/4″ Square Drive:
• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 150mm (6″)
• Extension Bar 65mm
• Extension Bar 165mm
• Extension Bar 265mm

3/8″ Square Drive:
• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 200mm (8″)
• Extension Bar 70mm
• Extension Bar 175mm
• Extension Bar 275mm
• Adaptor 3/8″Female x 1/4″Male
• Adaptor 3/8″Female x 1/2″Male
• Spark Plug Socket 14mm (9/16)
• Spark Plug Socket 16mm (5/8)
• Spark Plug Socket 21mm (13/16)

1/2″ Square Drive:
• Ratchet Handle Reversible Male
• Universal Joint
• Flex Handle 375mm
• Flex Handle 600mm
• Extension Bar 95mm
• Extension Bar 155mm
• Extension Bar 280mm
• Extension Bar 405mm
• Adaptor 1/2″ Female x 3/8″ Male

EVA Tray Measurements: 895mm x 450mm x 30mm

DRAWER 1 – EVA558T 30 Piece Combination Spanners EVA tray

Metric Combination Spanners:
• 17 Mirror Polish Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24

Imperial Combination Spanners:
• 13 Mirror Polish Combination Spanners: 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1

EVA Tray Measurements: 540mm x 395mm x 30mm

DRAWER 2 – EVA562T 15 Piece Plier EVA tray

• X-Force Combination Pliers 200mm (8″)
• X-Force Diagonal Cutting Pliers 200mm (8″)
• X-Force Long Nose Pliers 200mm (8″)
• Multi-Grip Pliers 250mm (10″)
• Mini Bolt Cutter 200mm
• Compact Hand Riveter
• Nut Riveter
• Automatic Wire Stripper
• Deluxe Crimping Wire
• Combination Circlip Pliers Set 5 Piece
• Straight Cut Tin Snips

EVA Tray Measurements: 540mm x 395mm x 30mm

DRAWER 3 – EVA560T 131 Piece Screwdriver & Fastening EVA tray

13 Piece TORQUEMASTER® Screwdriver Set:

• 8 Screwdrivers – Blade:
3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm

• 5 Screwdrivers – Phillips:
No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm

• Security Bit & Holder Set 33 Piece 1/4″ Hex Drive
• Bit holder Driver 6mm Hex Drive
• Impact Screwdriver Set 14 Piece
• 9 Piece Ratcheting Screwdriver
• Magnetiser & Demagnetiser
• 6 Piece Precision TORX® Screwdriver Set: T5, T6, T7, T8, T9, T10

• 6 Piece Precision Screwdriver Set:
Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm
Phillips: No.0, No.1

• 9 Piece Screwdriver Bit Set (Phillips)
• 9 Piece Screwdriver Bit Set (Hex)
• 9 Piece Screwdriver Bit Set (Tamperproof TORX®)
• 9 Piece Screwdriver Bit Set (TORX®)
• 9 Piece Screwdriver Bit Set (Blade)
• Bit Holder Coupler 1/4″ Drive x 1/4 Hex
• 1/4″ Mini Ratchet
• Magnetic Telescopic Pick-up Tool

EVA Tray Measurements: 540mm x 395mm x 30mm

DRAWER 4 – EVA564T 106 Piece Hex & TORX® Keys & Sockets EVA tray

• Imperial Ball Point Hex Key Set Long Series 9 Piece:
1/16″ x 14 x 90mm, 5/64″ x 16 x 100mm, 3/32″ x 18 x 112mm, 1/8″ x 20 x 126mm, 5/32″ x 25 x 140mm, 3/16″ x 28 x 160mm, 1/4″ x 32 x 180mm, 5/16″ x 36 x 200mm, 3/8″ x 40 x 224mm

• Metric Ball Point Hex Key Set Long Series 9 Piece:
1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm, 10.0 x 40 x 224mm

• Tamperproof TORX® Hex Key Set Long Series 9 Piece:
T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32x 180mm, T45H x 36 x 200mm, T50H x 40 x 224mm

• TORX® Hex Key Set Long Series 9 Piece:
T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

• Metric Ball Joint Jumbo Key Wrench 13 Piece:
2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12, 14, 17, 19mm Imperial Ball Joint

Jumbo Key Wrench 13 Piece:
5/64, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8 & 3/4″

• Metric Hex Socket Set:
1.5, 2, 2.5, 3, 4, 4.5, 5, 6, 8, 10, 12mm

• Tamperproof TORX® Socket Set:
T10H, T15H, T20H, T25H, T30H, T40H, T45H, T50H, T55H, T60H

• TORX® Socket Set:
T10, T15, T20, T25, T27, T30, T40, T45, T50, T55, T60

• Spline Socket Set:
M4, M5, M6, M8, M8, M10, M12, M12, M14, M16, M18

EVA Tray Measurements: 540mm x 395mm x 30mm

DRAWER 5 – EVA566T 20 Piece Striking & Prying EVA tray

• Ball Pein Hammer 16OZ
• Ball Pein Hammer 24OZ
• Ironkore 4lb Club Hammer
• Dead Blow Hammer 24OZ
• Soft Face Hammer 38mm

• Pry Bar Set 2 Piece:
Extended Bent Pry Bar – 450mm (18″)
Bent Pry Bar – 200mm (8″)

• Punch and Chisel Set 12 Piece:
3 x Cold Chisels – 16mm, 19mm, 25mm
4 x Pin Punches – 2.5mm, 4mm, 5mm, 6.5mm

• 1 x Centre Punch – 5mm
• 1 x Drift Punch – 5mm
• 2 x Nail Punch – 2.5mm, 5mm
• 1 x Cape Punch
• Automatic Centre Punch

DRAWER 6 – EVA568T 58 Piece LOK-ON™ Impact EVA tray

• 12 LOK-ON™ Metric Impact Sockets 1/2″ Square Drive:
10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 11 LOK-ON™ Imperial Impact Sockets LOK-ON™:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1″

• 12 LOK-ON™ Metric Impact Deep Sockets 1/2″ Square Drive:
10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 11 LOK-ON™ Imperial Impact Deep Sockets 1/2″ Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1″

• 8 Impact Accessories
1/4″ Socket Driver
3/8″ Socket Driver
1/2″ Socket Driver
1/2″ Universal joint
1/2″ Extension Bar 75mm
1/2″ Extension Bar 150mm
Adaptor 3/8″F x 1/2″M
Fastener Punch

DRAWER 7 – EVA565T 19 Piece Measure/Cut/Hook/Scrape EVA tray

• 8m Metric Tape Measure
• Stainless Steel Ruler 300mm (12″)

• File Set 5 Piece:
Flat File Bastard Cut, Half Round File Bastard Cut,
Flat File 2nd Cut, Square File Bastard Cut,
Round File Bastard Cut

• Folding Utility Knife
• Folding Scraper
• Multipurpose Industrial Scissors

• Mini Hook and Pick Set 4 Piece:
AWL:129mm, Pin Remover: 115mm, L hook: 115mm,
V hook: 125mm

• Large Hook and Pick Set 4 Piece:
AWL: 260mm, Pin Remover: 260mm, L hook: 260mm,
V hook: 260mm, Scriber 235mm

EVA Tray Measurements: 540mm x 395mm x 30mm

LOOSE ITEMS
• Adjustable Wrench 250mm (10″)
• Lock Grip Plier 250mm (10″)
• Heavy Duty Hack Saw
• 4 Piece Pry Bar Set
